Choosing a solar panel by wattage alone can lead to slow charging, wasted capacity, or an electrical mismatch. A 400-watt panel is not automatically suitable for every power station, and two panels that use the same connector may still have different voltage and current characteristics.
A reliable match begins with the power station’s solar input limits, then considers the panel type, expected daily energy, connection method, and operating environment. These checks make it easier to choose a setup that charges efficiently without exceeding the equipment’s specifications.
Start with the Power Station’s Solar Input Limits
Find the solar input section in the power station manual or specification sheet. It should identify the supported input voltage range, maximum current, and maximum solar charging wattage. All three values matter.
The panel array’s operating voltage should fall inside the station’s supported solar input range. Its open-circuit voltage must remain below the maximum input voltage. This deserves extra attention in cold conditions because panel voltage can rise as temperature falls. Leave appropriate voltage margin instead of designing an array that reaches the limit only under standard test conditions.
Current must also stay within the input rating. A station may limit the current it accepts even when additional panel wattage is available. Exceeding the permitted voltage can damage equipment, while exceeding a current or wattage limit may cause clipping, shutdown, or operation outside the manufacturer’s instructions. Do not assume that a matching plug proves electrical compatibility.
Understand What a Panel’s Watt Rating Means
A panel’s rated watts describe its maximum output under standardized test conditions. The figure is useful for comparing panels, but it is not a promise of continuous real-world production. Sun angle, cloud cover, shade, dirt, panel temperature, cable loss, and charge-controller efficiency all affect output.
Watts also describe power at a moment, while watt-hours describe energy produced over time. A 200-watt panel operating at an average of 150 watts for four hours delivers about 600 watt-hours, or 0.6 kWh. That is the energy available to recharge the battery before further system losses are considered.
Panel efficiency is a different measurement. A more efficient panel converts a larger share of the sunlight hitting its surface into electricity, which can be valuable when roof area, campsite space, or vehicle surface area is limited. Efficiency alone does not determine daily energy, because total panel area, placement, and available sunlight still matter.
Estimate the Daily Energy You Need
Begin with the energy that must be returned to the battery each day. If a portable power station supplies a refrigerator, lights, a router, and small electronics that consume 1.2 kWh per day, the solar array should be capable of replacing roughly that amount under realistic conditions.
A simple starting estimate is panel wattage multiplied by local peak-sun hours. A 400-watt array receiving five peak-sun hours has a theoretical daily yield of 2 kWh. Actual production will be lower after accounting for heat, imperfect angle, shading, wiring, and conversion losses. Use local solar-resource data and build in margin rather than treating the theoretical result as guaranteed energy.
Charging time also depends on battery size and state of charge. Dividing battery capacity by panel wattage produces only an ideal estimate. A 1,024 Wh battery paired with a 200-watt panel would require a little over five hours at a constant full 200 watts, but real charging normally takes longer. The power station may also reduce charging power near a full state of charge.
Choose the Right Panel Format

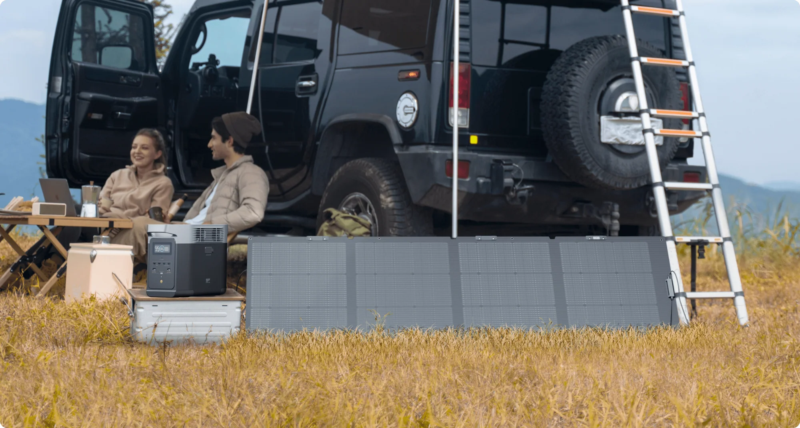

Panel construction should match how and where the system will be used. Portable folding panels work well for camping, emergency charging, and temporary setups because they can be stored and repositioned. Their main tradeoffs are the need to deploy them each time, protect them from strong wind, and prevent theft or accidental damage.
Rigid panels are better suited to permanent roofs, ground racks, sheds, and fixed off-grid systems. They are generally easier to secure and keep at a consistent angle, but mounting, weatherproof cable routing, and structural requirements make installation more involved. EcoFlow notes that rigid-panel installation may require professional help.
Flexible panels are useful where weight and surface shape make rigid modules impractical, such as certain vans or curved roofs. They still need proper support, ventilation, cable protection, and a mounting method approved for the surface. A lightweight panel should not be treated as installation-free when it will remain permanently attached to a moving vehicle or building.
EcoFlow’s solar panels collection includes portable, rigid, flexible, and bifacial options ranging from compact 60W models to 400W panels. The useful choice is not simply the highest-output model. It is the format and electrical rating that fit the available space, charging goal, power station, and deployment method.
Connect Multiple Panels Correctly
When panels are connected in series, their voltages add while current remains approximately equal to the current of one panel. Series wiring can help an array reach the charge controller’s operating voltage and can reduce current in long cable runs, but the total open-circuit voltage must remain below the power station’s limit.
When panels are connected in parallel, voltage remains approximately the same while current adds. Parallel wiring can be useful when the station accepts a lower voltage and higher current, or when panels may receive different amounts of sun. The combined current must remain within the input limit, and suitable branch connectors and overcurrent protection may be required.
Panels combined in one string should normally have compatible electrical characteristics. Mixing different wattages or voltage ratings can restrict output because the array is influenced by its weakest or least compatible component. Follow the power station and panel manufacturers’ approved wiring diagrams instead of selecting series or parallel connections only for convenience.
Place Panels for Real Energy Production
Unshaded exposure usually matters more than a small difference in advertised efficiency. A shadow from a roof vent, tree branch, vehicle, or nearby panel can reduce array output, and its effect may be greater when shaded and unshaded panels share the same series string.
For fixed systems in the Northern Hemisphere, south-facing placement and a suitable tilt generally produce strong annual output, although the best angle depends on location and seasonal goals. Portable panels can be repositioned during the day. Pointing them more directly toward the sun in the morning, around midday, and later in the afternoon can produce more useful energy than leaving them flat.
Bifacial panels need access to light on both sides to benefit from rear-side generation. Raising the panel above a light-colored or reflective surface is generally more effective than placing the rear directly against dark ground. Any stand must still keep the panel stable when wind conditions change.
Check Cables, Connectors, and Outdoor Conditions
Use cables and adapters rated for the array’s voltage, current, connector type, and outdoor environment. Confirm connector polarity before energizing the system. Longer or undersized cables create more voltage drop and waste energy, so cable length and conductor size should be appropriate for the current and installation.
A weather-resistant panel does not make every part of the system weather-resistant. Check the protection rating and operating limits of extension cables, adapters, branch connectors, and the power station itself. Keep connections clean, fully seated, and protected from standing water, and inspect cables periodically for heat damage, cuts, loose contacts, or corrosion.
Permanent rooftop or household installations also involve structural loading, wind resistance, grounding, rapid-shutdown requirements, electrical codes, permits, and utility rules. A qualified solar installer or electrician should handle work that connects to a building electrical system. Portable setups remain simpler, but they still need stable placement and operation within the manufacturer’s instructions.
Conclusion
Matching a solar panel to a portable power station requires more than comparing wattage. Start with the station’s voltage, current, and wattage limits; estimate realistic daily energy; and choose a panel format suited to the installation. Then confirm the series or parallel configuration, connector ratings, cable size, placement, and weather protection.
A correctly matched array may be smaller than the largest one available, yet charge more reliably because it operates inside the power station’s preferred range and receives better sunlight. Electrical compatibility and practical placement are what turn a panel rating into useful stored energy.
